TERRA OPTIMA

Voor een bijna vlak dak

TERRA OPTIMA keramische pannen maken indruk door hun eenvoud en functionaliteit. De vorm van de pan wordt bepaald door een parallel lopende platte wel die overgaat in een licht hol dakpanvlak. De speciale kopsluiting laat een variabele grote latafstand toe van 50 mm.

Voordelen

  • Stijl: landelijk en rustiek
  • Zeer licht gegolfde pan
  • Architecturaal veelzijdig
  • Hoog verschuifbereik en installatiegemak
  • Hoge breuksterkte, vorstbestendigheid en lage vochtabsorptie
  • Zeer krasbestendig oppervlak

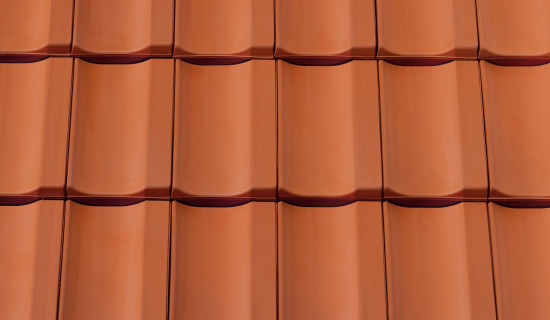

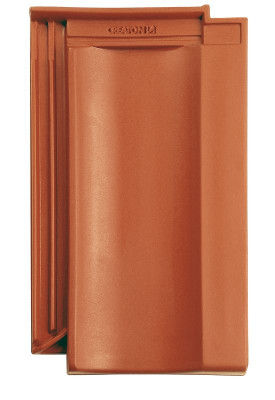

natuurrood
natuurrood
NUANCE Koperrood engobe
NUANCE Koperrood engobe
NUANCE Wijnrood engobe
NUANCE Wijnrood engobe
NUANCE Antraciet engobe
NUANCE Antraciet engobe
FINESSE zwart
FINESSE zwart

Technische gegevens

Afmetingen (l x b - mm)444 x 262
Gewicht per dakpan (kg)3,3
Minimum dakhelling * (x°)16°
Dekbreedte (mm)221 - 224
Latafstand (mm)350 - 380 **
Aantal pannen/m² (stuks)11,9 - 13,8
Gewicht/m² (kg)39 - 46
Profielhoogte (mm)32

* Met CREATON onderdak. Plaatsing in verband voor vlakke dakpannen.

** Latafstand vanaf 330 mm mogelijk mits de flappen van de gevelpannen afgezaagd worden in de daartoe voorziene inkepingen (enkel nodig voor latafstanden van 330 tot 350 mm).

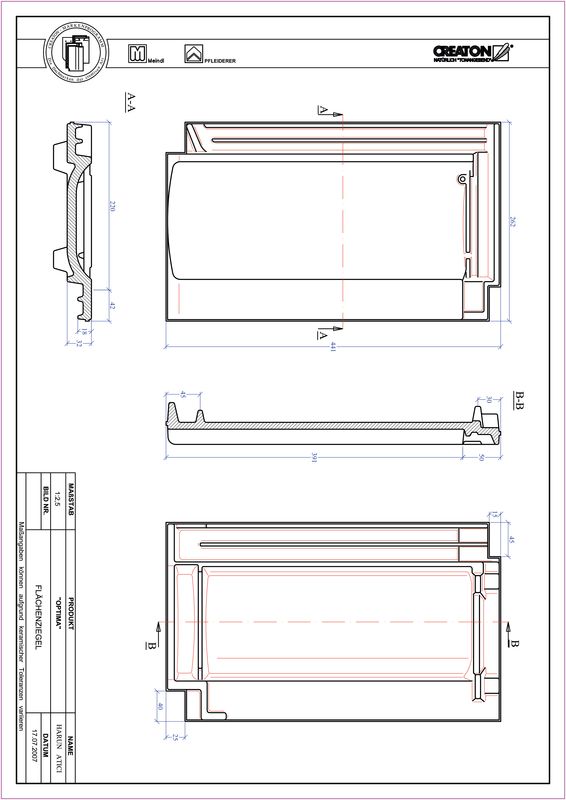

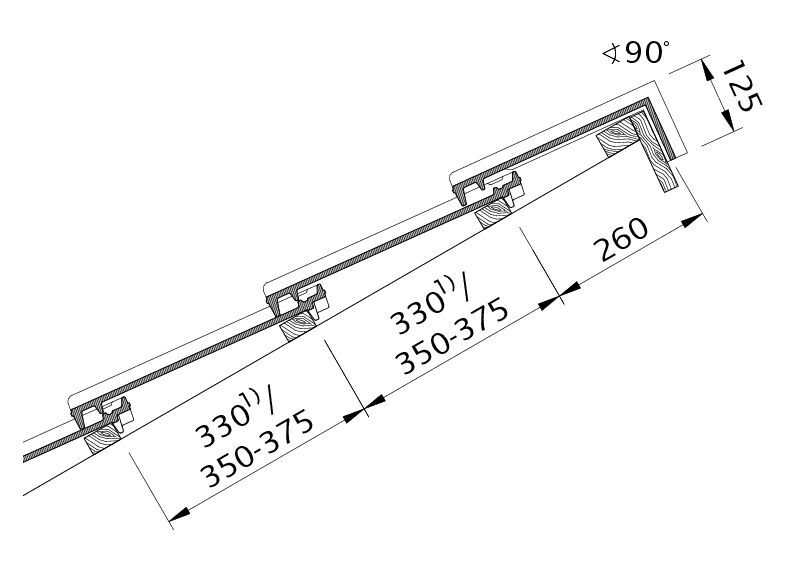

Technische tekeningen

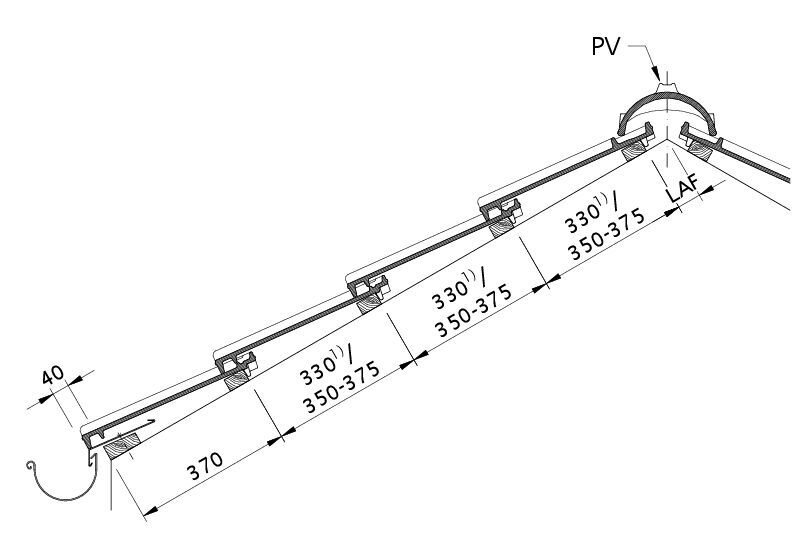

Drawing OPTIMA roof cross-section DQF
Drawing OPTIMA roof cross-section DQF

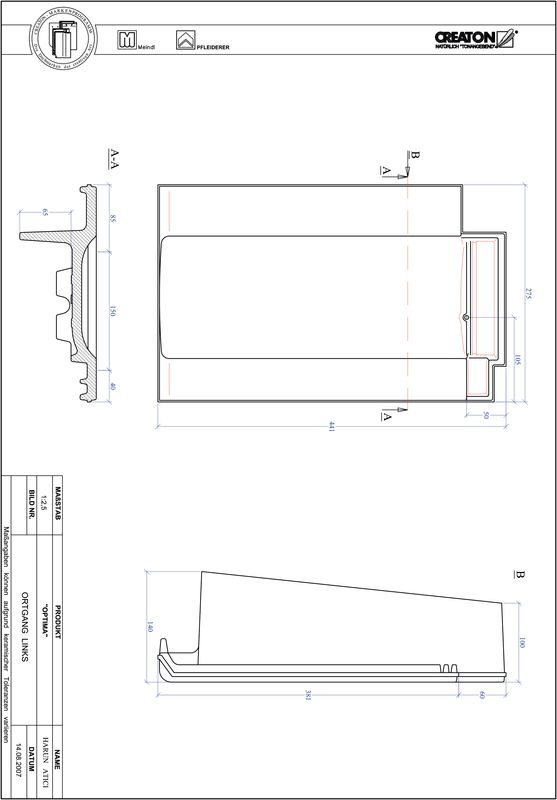

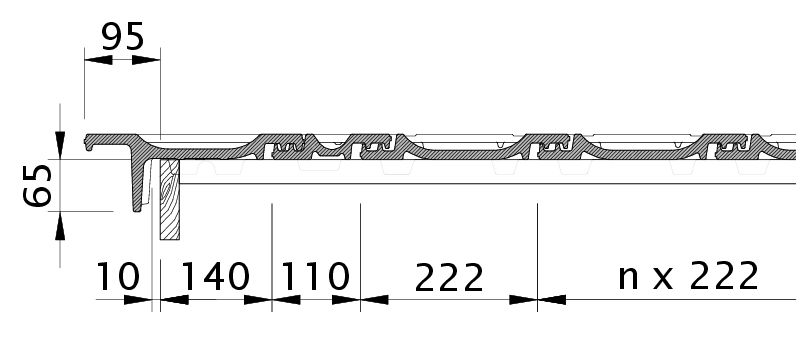

Drawing OPTIMA verge tile left with barge board OBL
Drawing OPTIMA verge tile left with barge board OBL

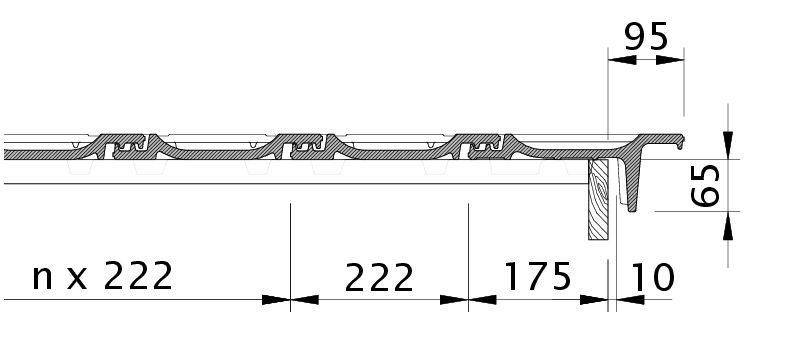

Drawing OPTIMA verge tile right with barge board OBR
Drawing OPTIMA verge tile right with barge board OBR

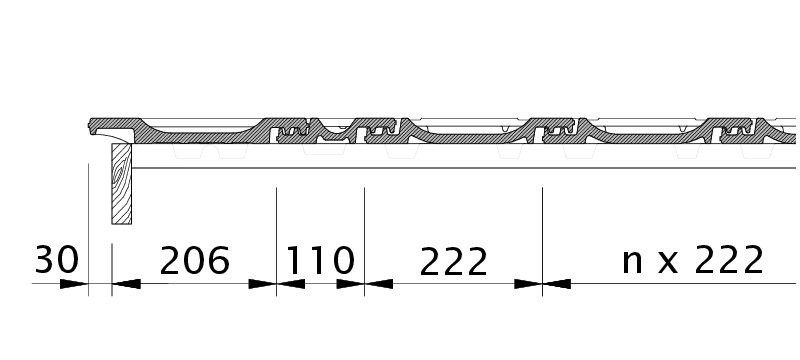

Drawing OPTIMA verge left with verge sheet metal and double roll ODL
Drawing OPTIMA verge left with verge sheet metal and double roll ODL

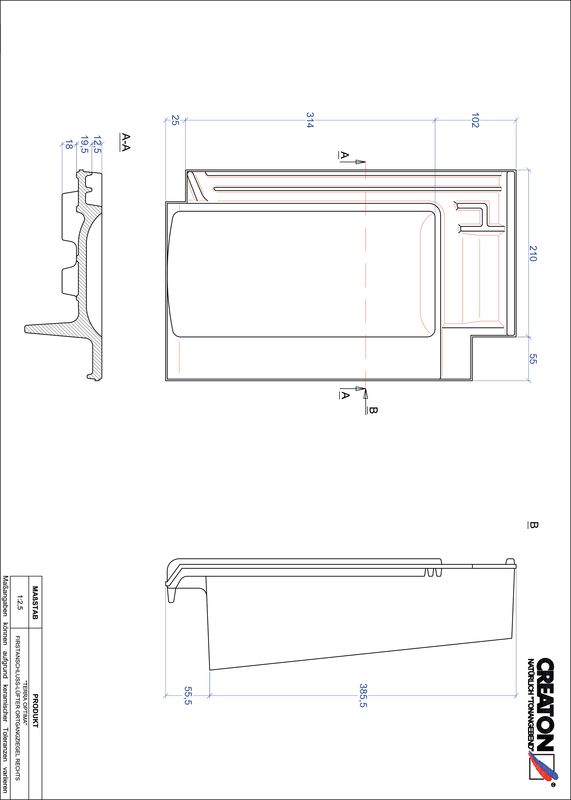

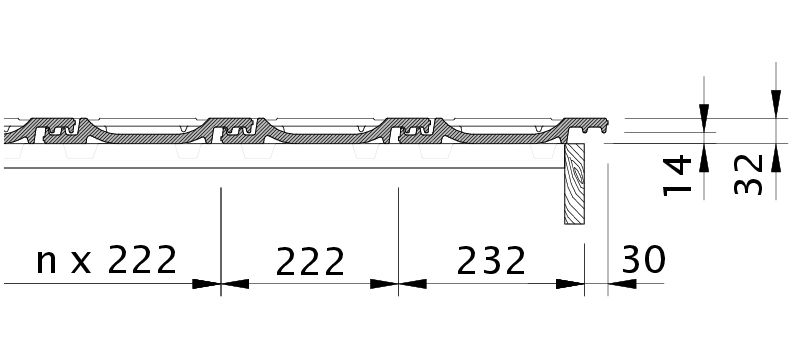

Drawing OPTIMA verge right with verge sheet metal and field tile OFR
Drawing OPTIMA verge right with verge sheet metal and field tile OFR

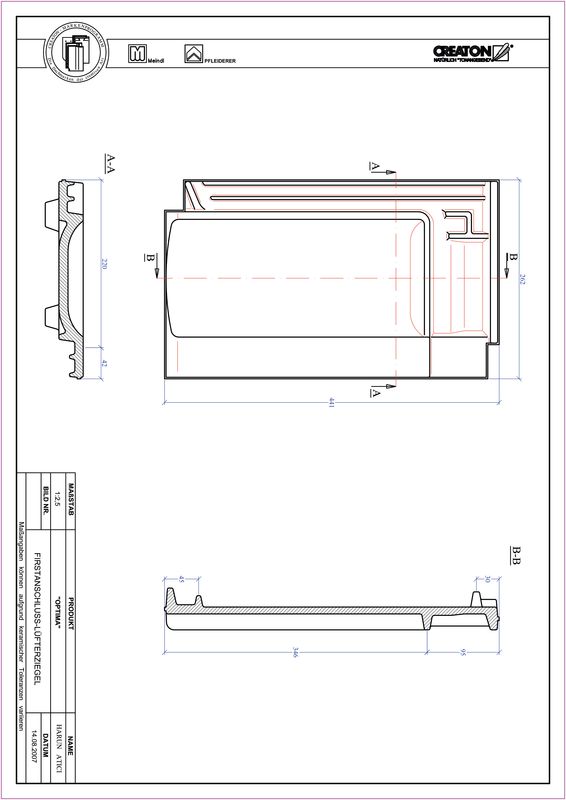

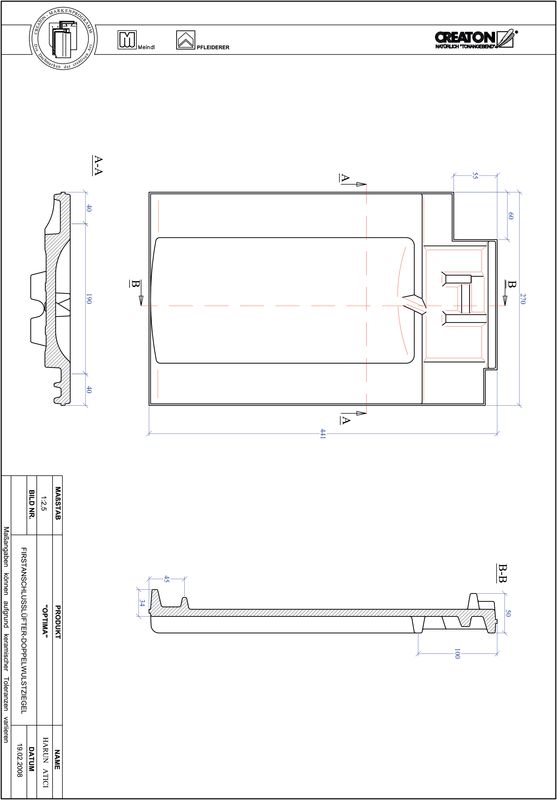

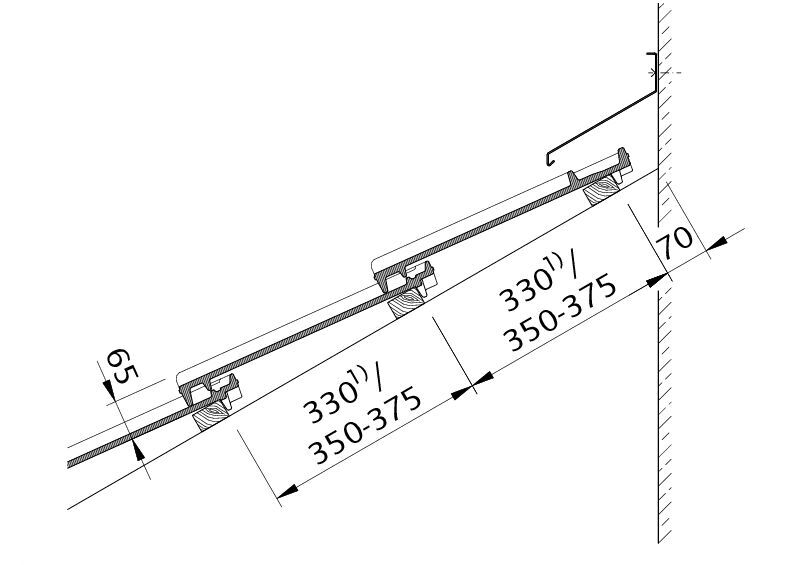

Drawing OPTIMA wall connection (above) with FALZ WMF
Drawing OPTIMA wall connection (above) with FALZ WMF
Drawing TERRA OPTIMA general view GES
Drawing TERRA OPTIMA general view GES

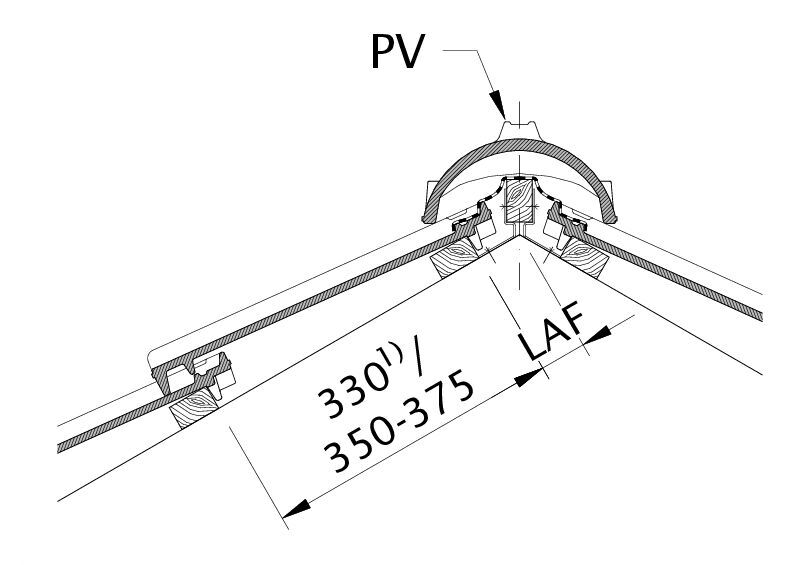

Drawing OPTIMA distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing OPTIMA distance from batten to ridge intersection point, ridge batten spacing LAF

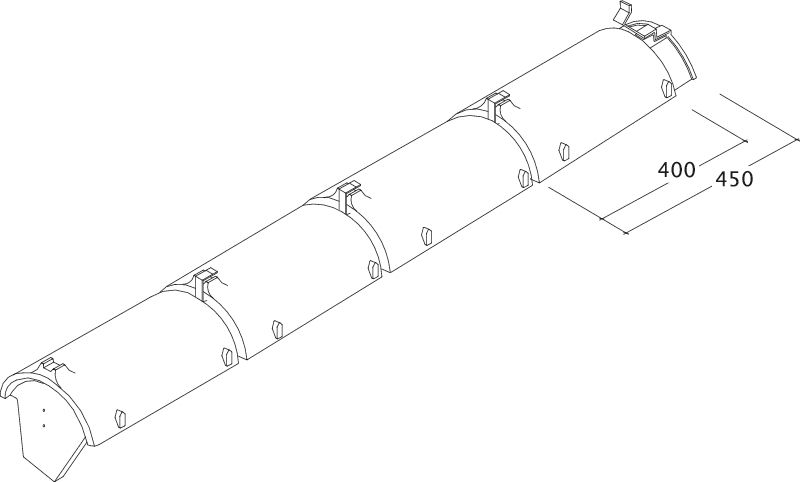

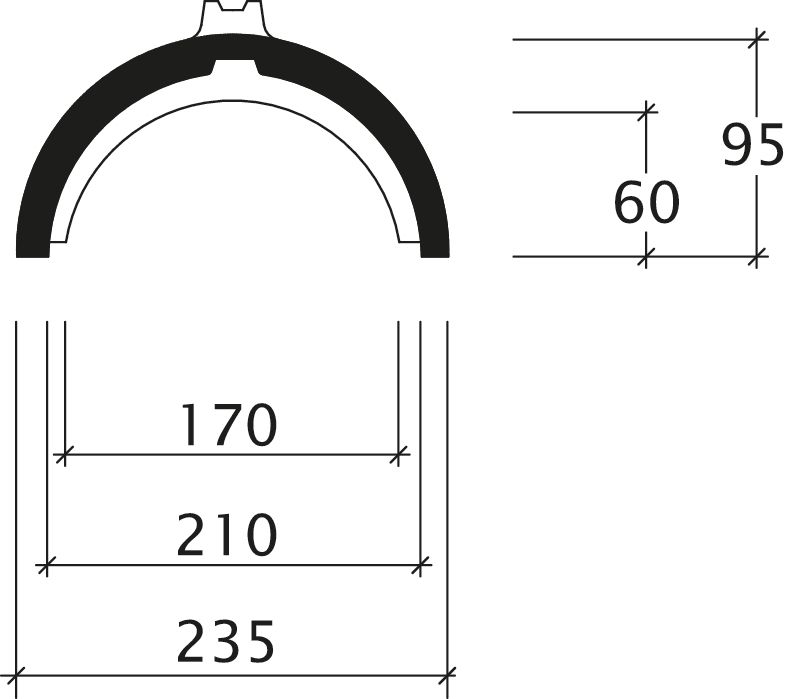

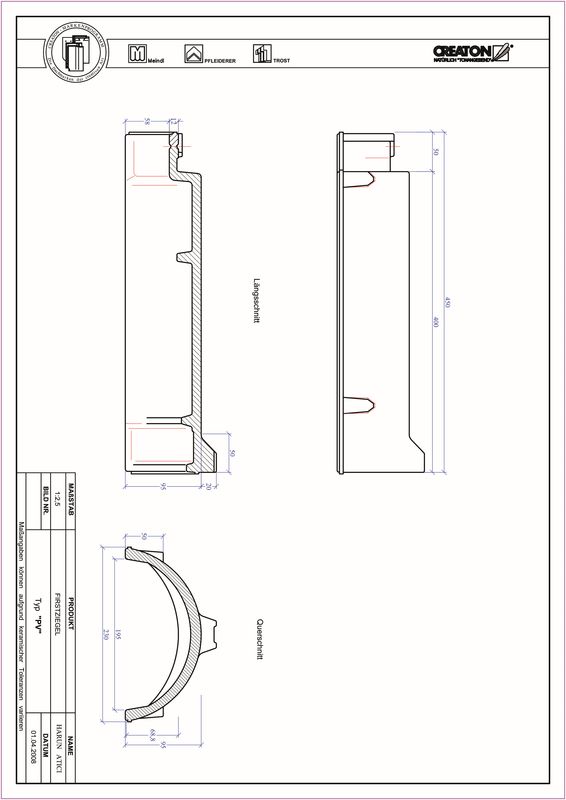

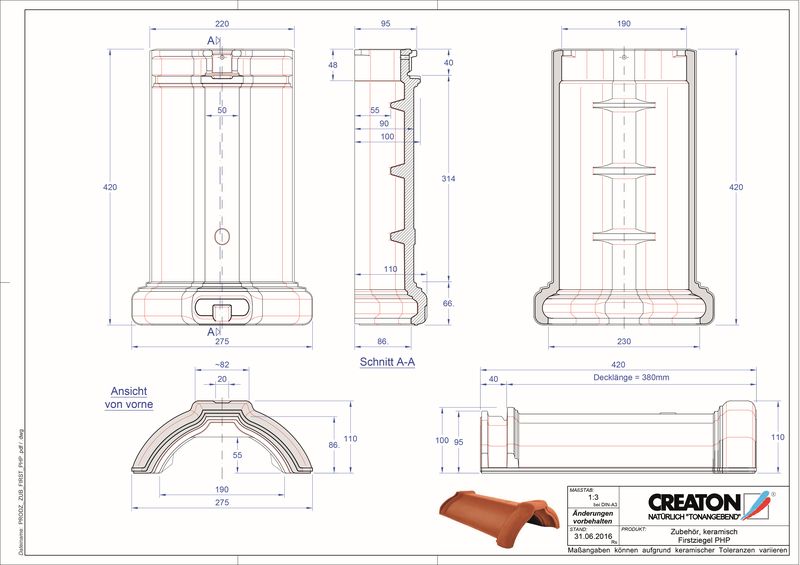

Drawing ridge and hip tile product range PV-Firstziegel
Drawing ridge and hip tile product range PV-Firstziegel
Drawing ridge and hip tile product range PV-Firstziegel-Perspektive
Drawing ridge and hip tile product range PV-Firstziegel-Perspektive

LAF/FLA waarden

Bepalen afstand bovenste panlat tot vorst/nokas
Bepalen hoogte vorst- of noklat boven vorst- of nokas

DAKHELLING

Afstand L in mm

Vorst- of noklat
Hoogte M in mm

 Voor vorst/nok PHVoor vorst/nok PVVoor vorst/nok PHVoor vorst/nok PV
16°60609090
20°55608080
25°50607575
30°45557065
35°45555560
40°40455550
45°35455045

Accessoires

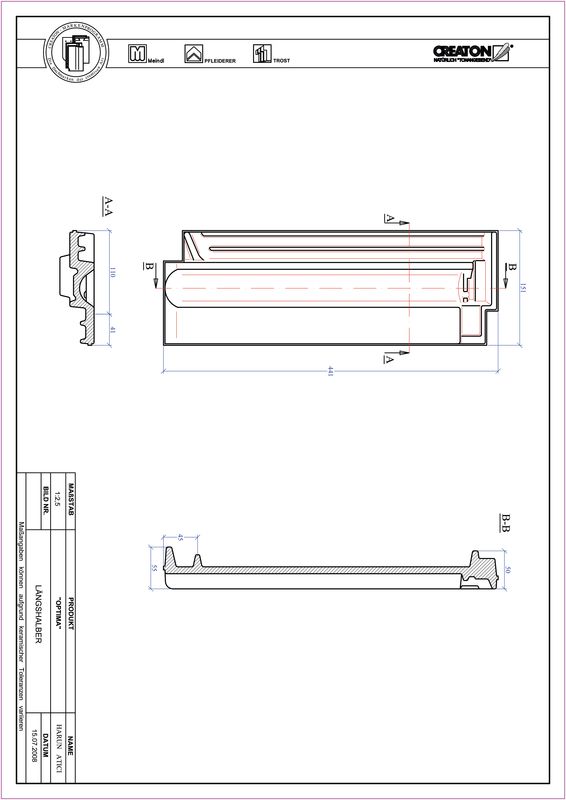

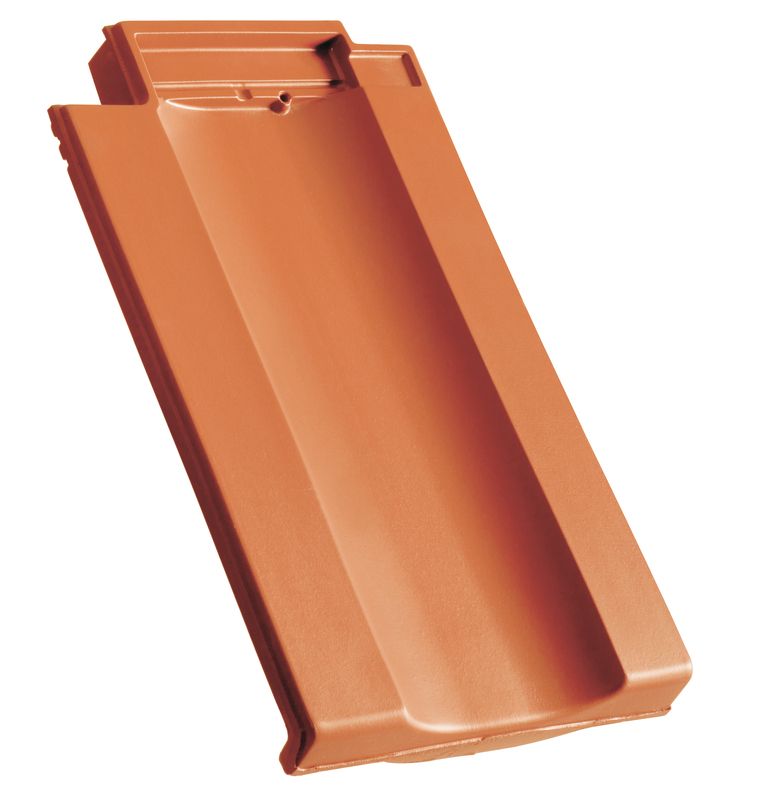

OPT half-width tile

OPT half-width tile

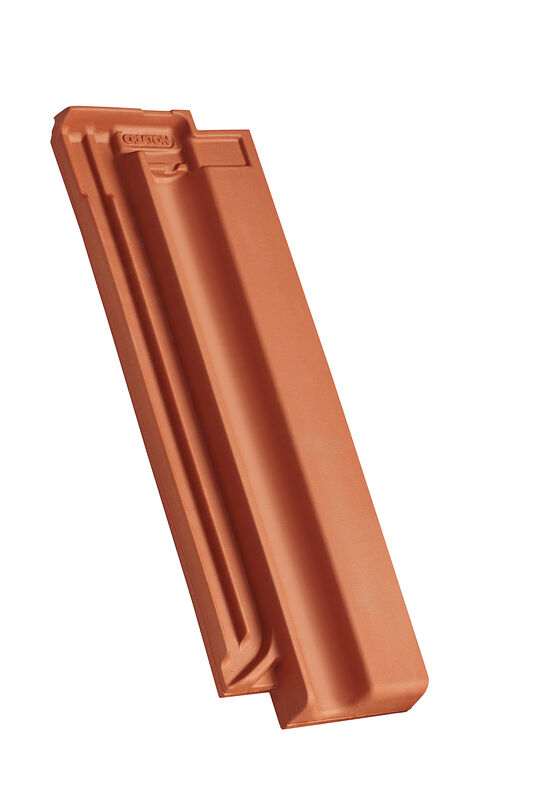

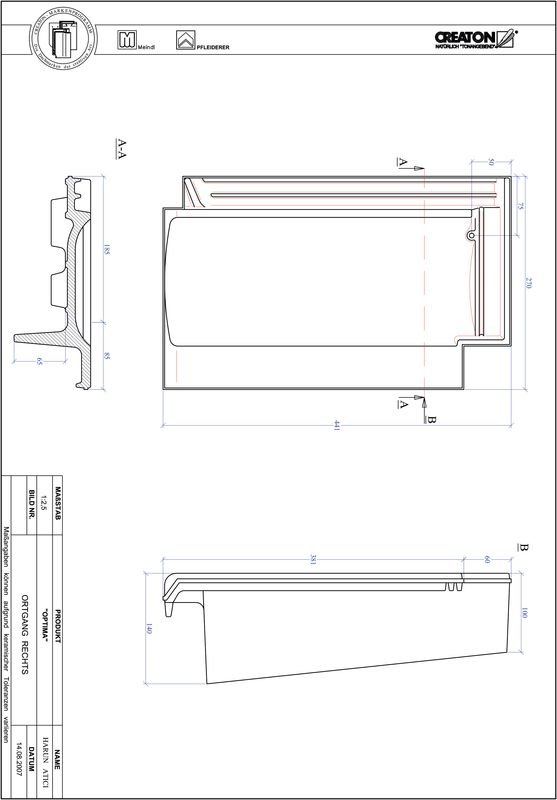

OPT verge tile right

OPT verge tile right

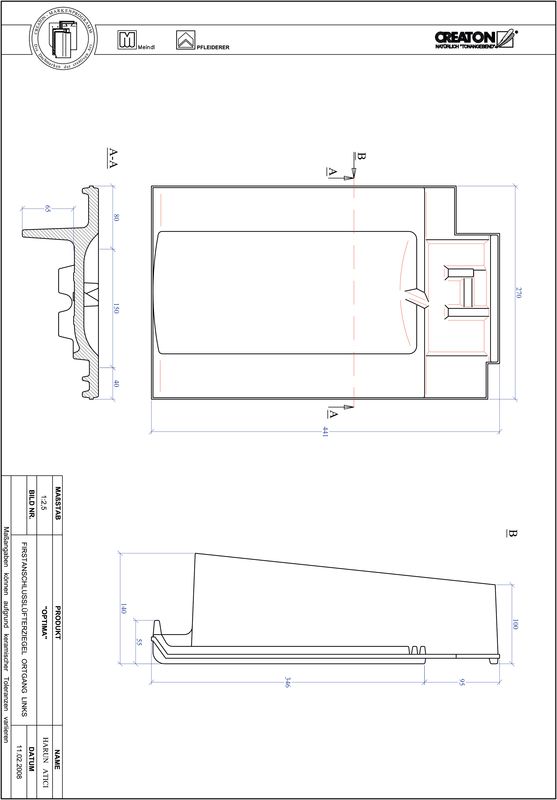

OPT verge tile left

OPT verge tile left

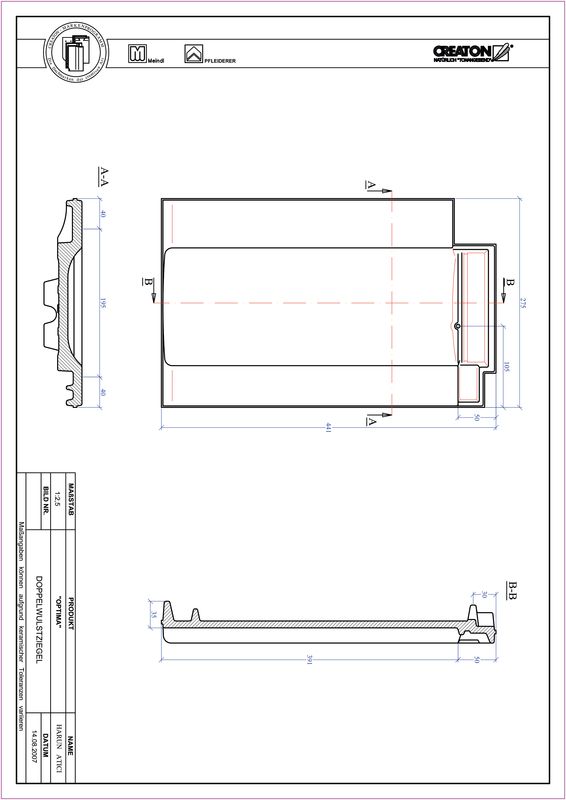

OPT double roll tile

OPT double roll tile

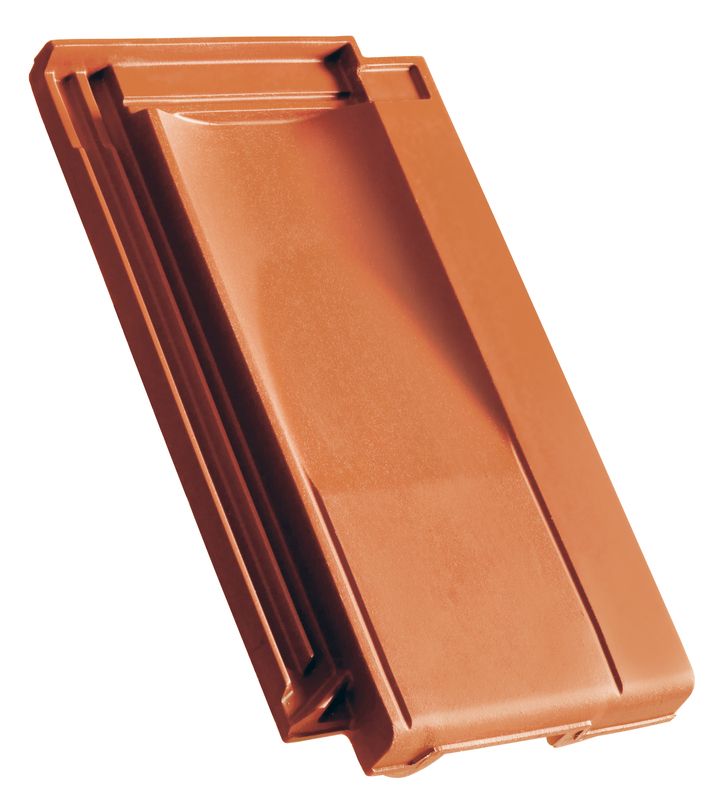

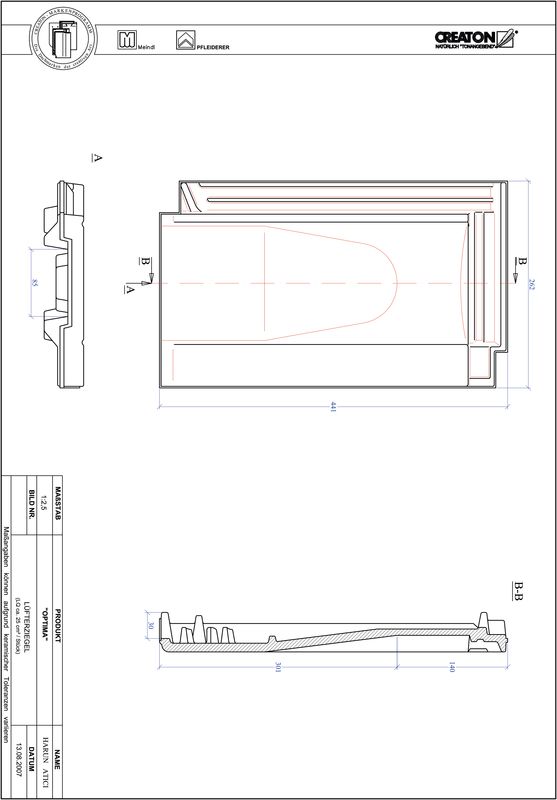

OPT ventilating tile

OPT ventilating tile

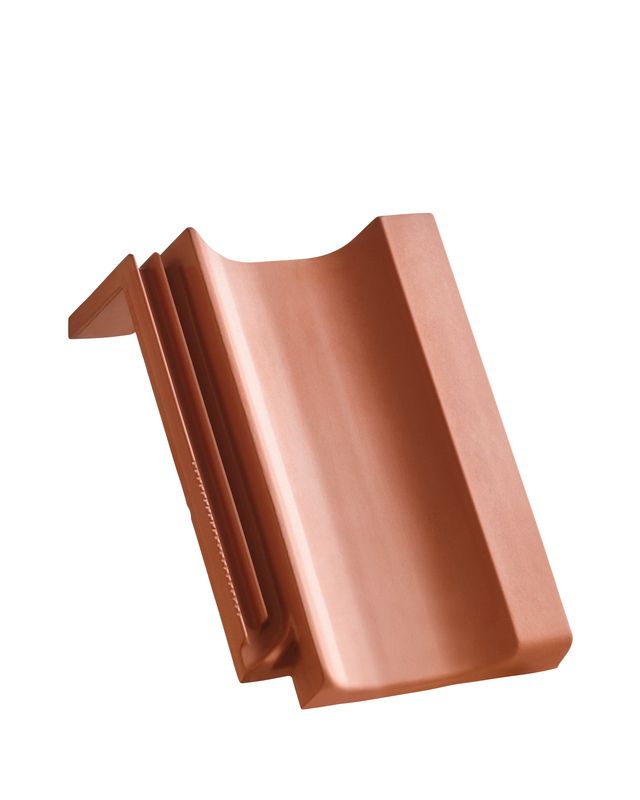

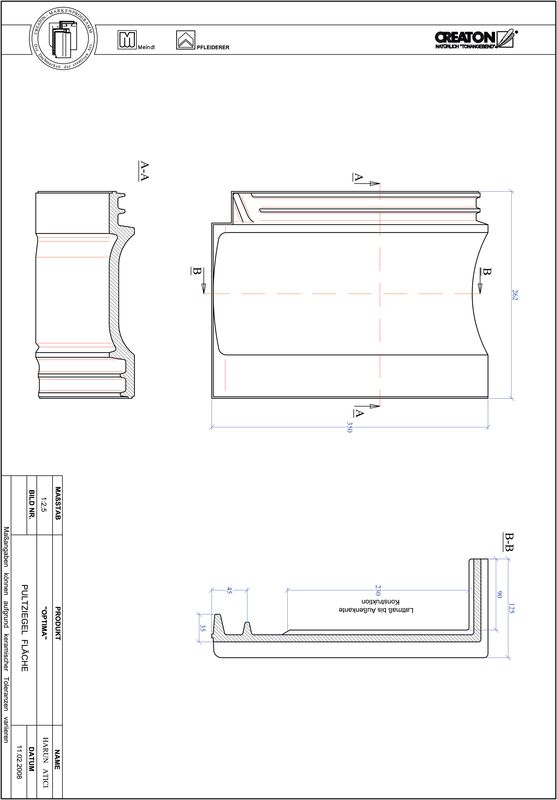

OPT shed roof tile decorated standard

OPT shed roof tile decorated standard

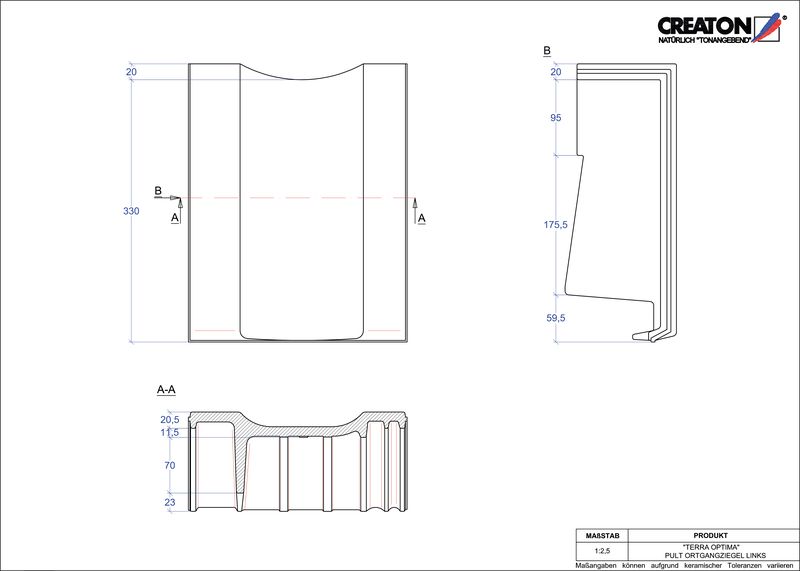

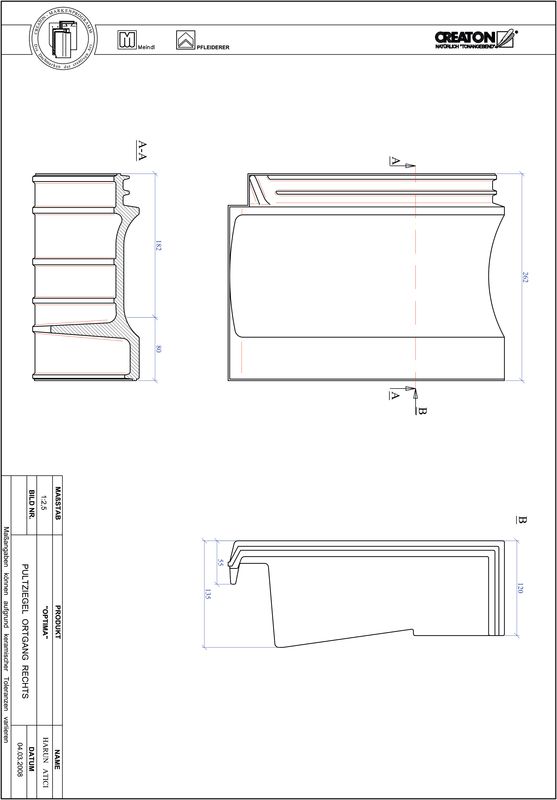

OPT shed roof verge tile decorated standard right

OPT shed roof verge tile decorated standard right

OPT shed roof verge tile decorated standard left

OPT shed roof verge tile decorated standard left

OPT shed roof tile decorated special size

OPT shed roof tile decorated special size

OPT shed roof verge tile decorated special size right

OPT shed roof verge tile decorated special size right

OPT shed roof verge tile decorated special size left

OPT shed roof verge tile decorated special size left

OPT mansard/pitch transition tile decorated special size

OPT mansard/pitch transition tile decorated special size

OPT mansard/pitch transition verge tile decorated special size right

OPT mansard/pitch transition verge tile decorated special size right

OPT mansard/pitch transition verge tile decorated special size left

OPT mansard/pitch transition verge tile decorated special size left

Productgamma voor ventilatie en doorvoer

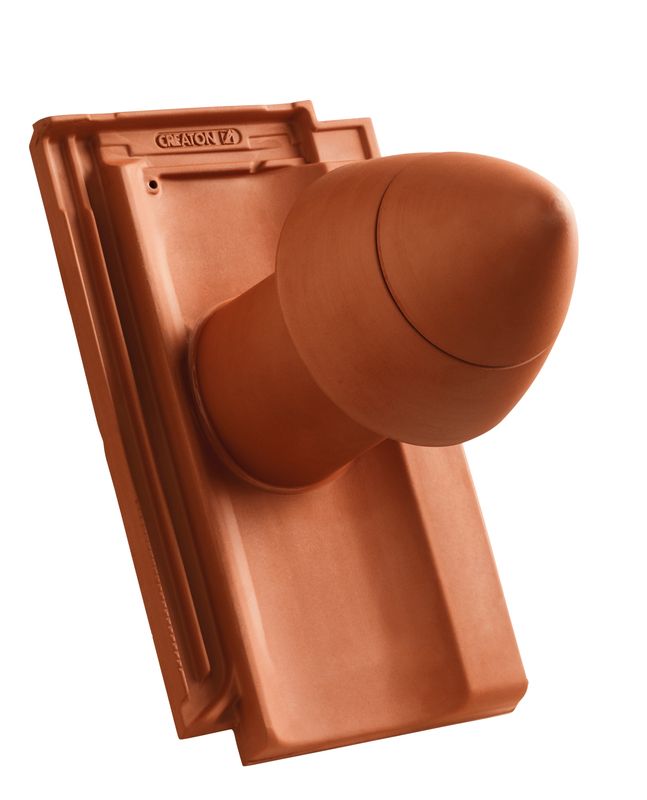

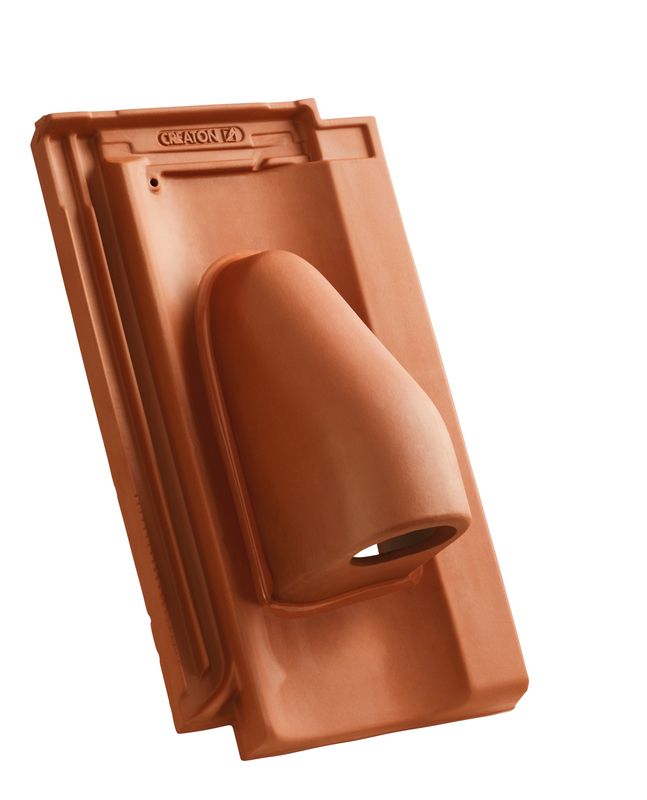

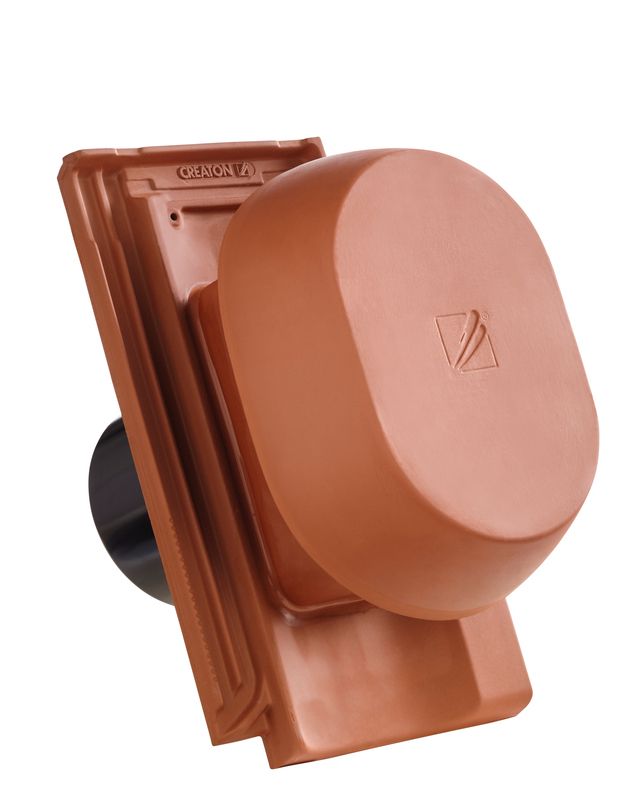

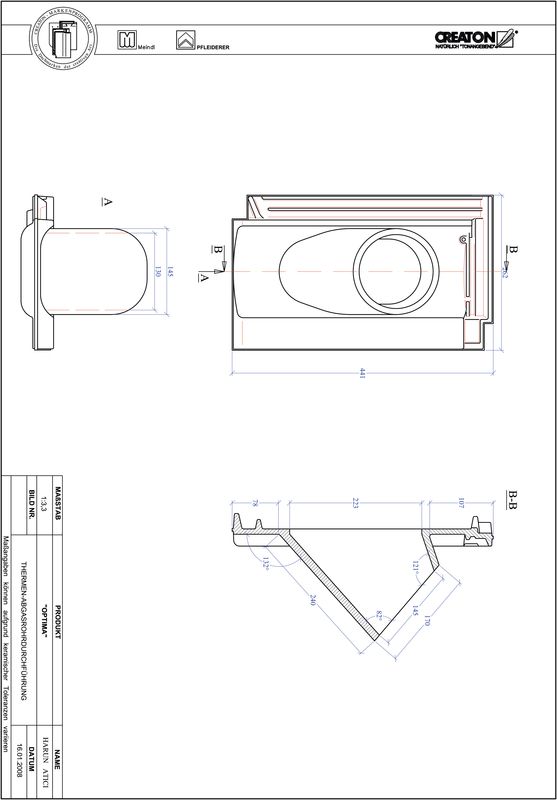

OPT SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

OPT SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

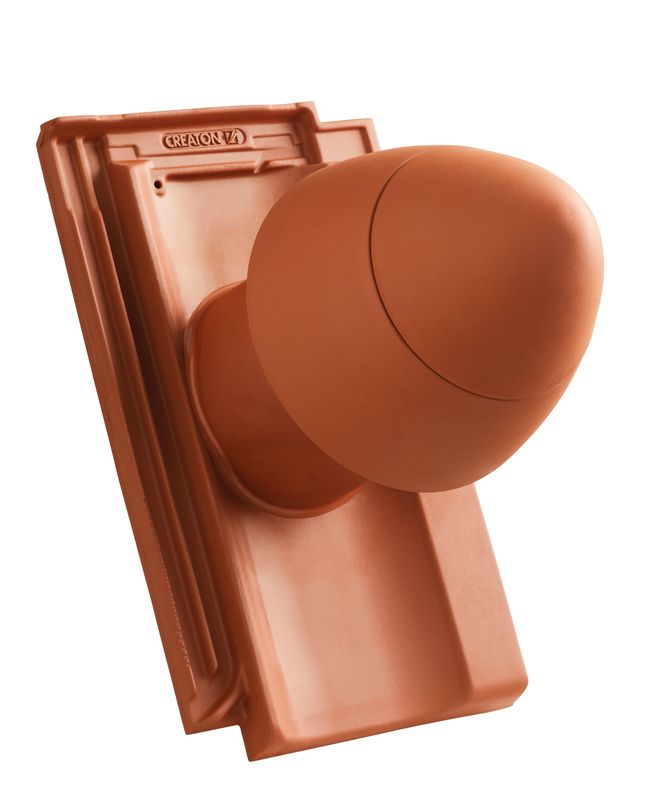

OPT SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

OPT SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

OPT SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

OPT SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

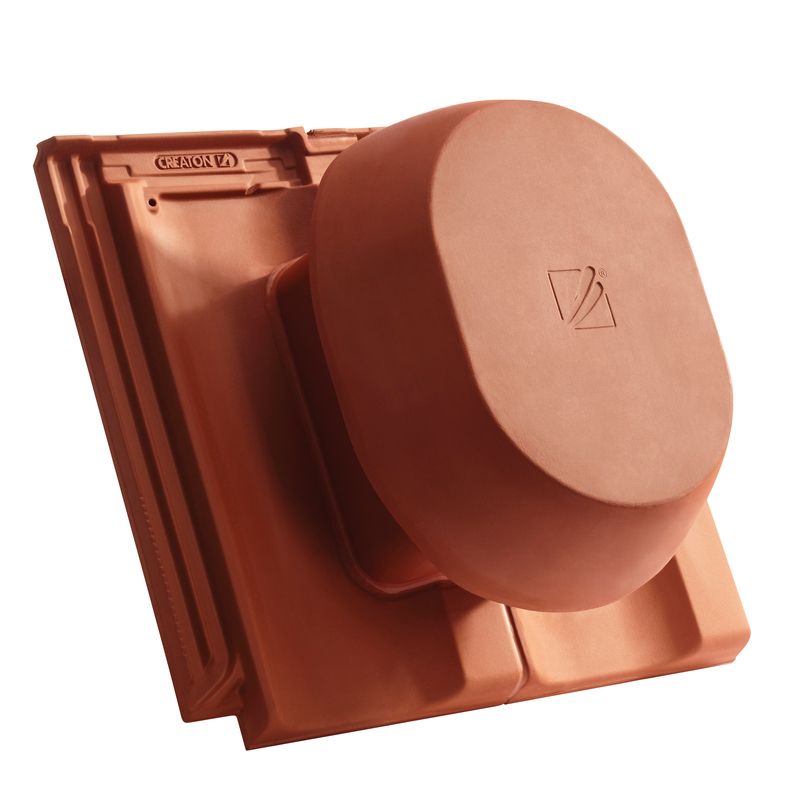

OPT SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

OPT SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

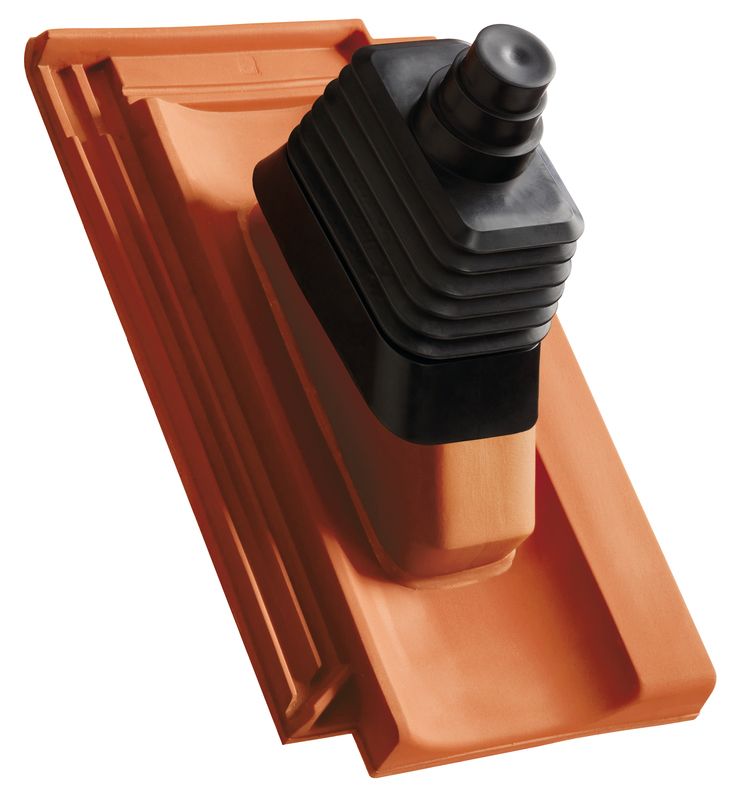

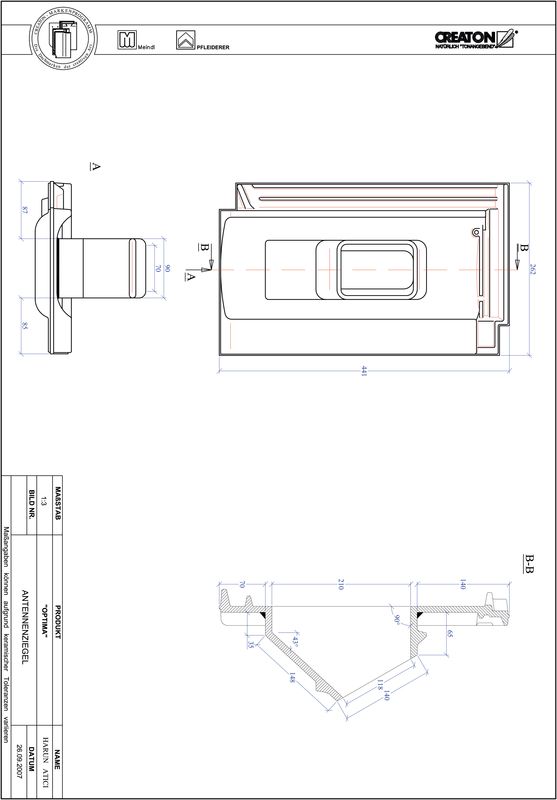

OPT aerial entry

OPT aerial entry

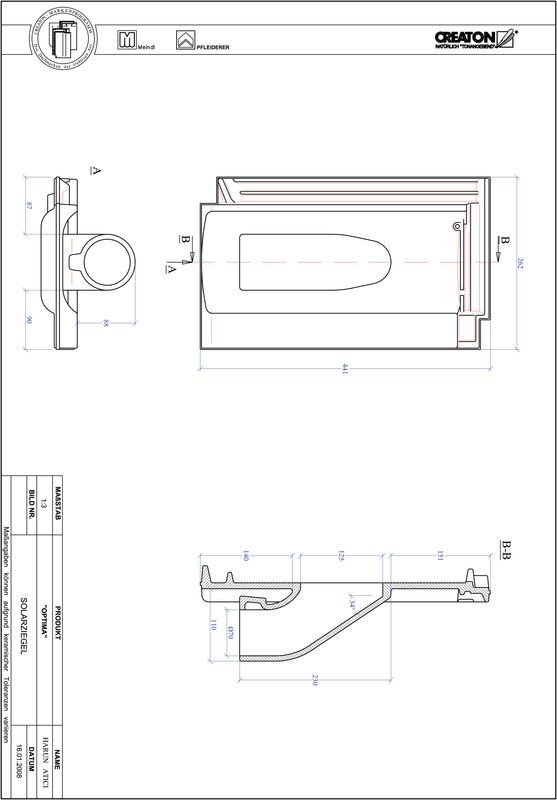

OPT solar entry tile

OPT solar entry tile

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 200

Verbindingsslang voor universele verluchtingspan DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 150/160

Productgamma voor dakafwerking en de beste bescherming

OPT transparent tile (acrylic)

OPT transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Panhaak (MZ3, HAR, OPT)

Panhaak (MZ3, HAR, OPT)

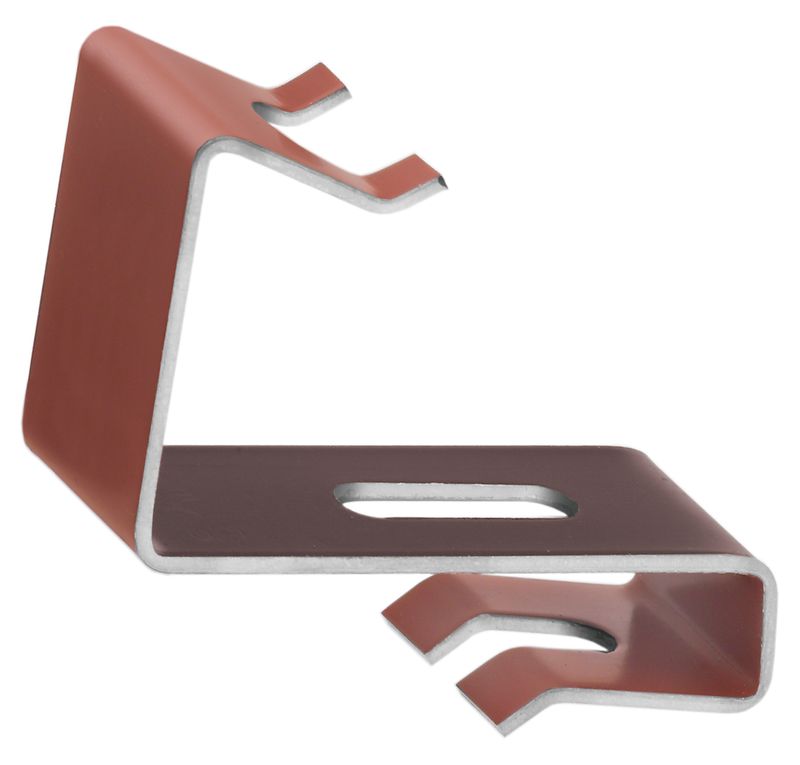

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Verluchtingskam

Verluchtingskam

Verluchtingskam

Verluchtingskam

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Nok/Vorst-systemen voor dakpannen

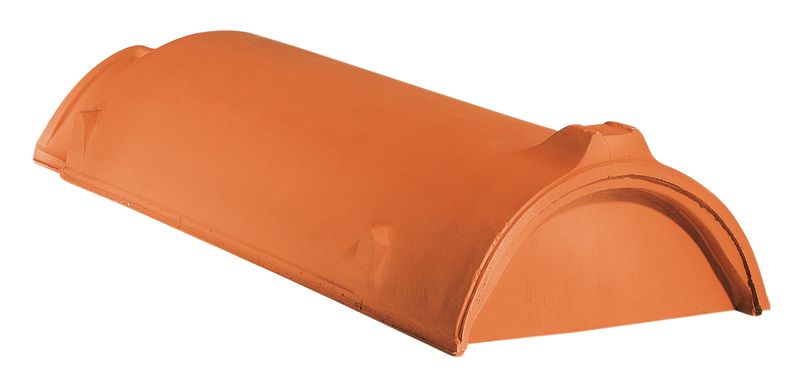

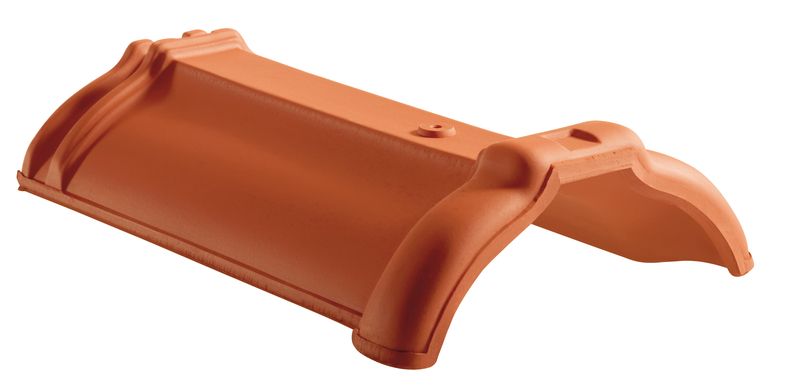

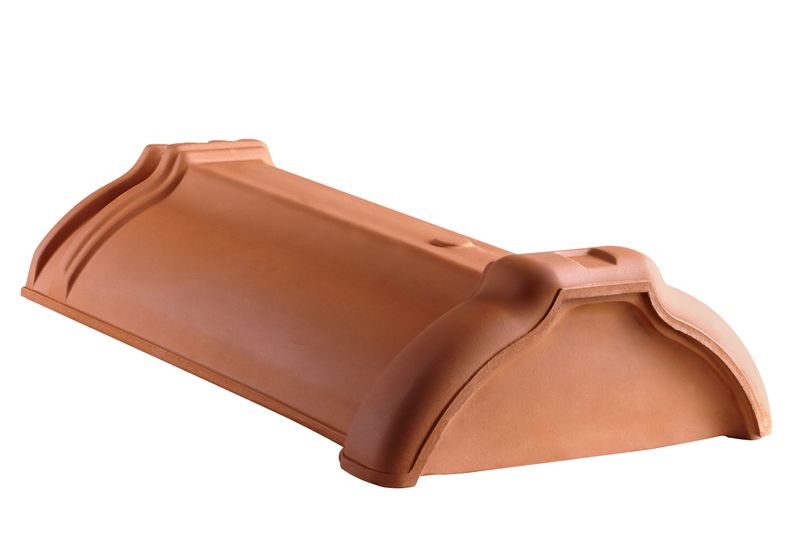

HÖN vorst/nok PH

HÖN vorst/nok PH

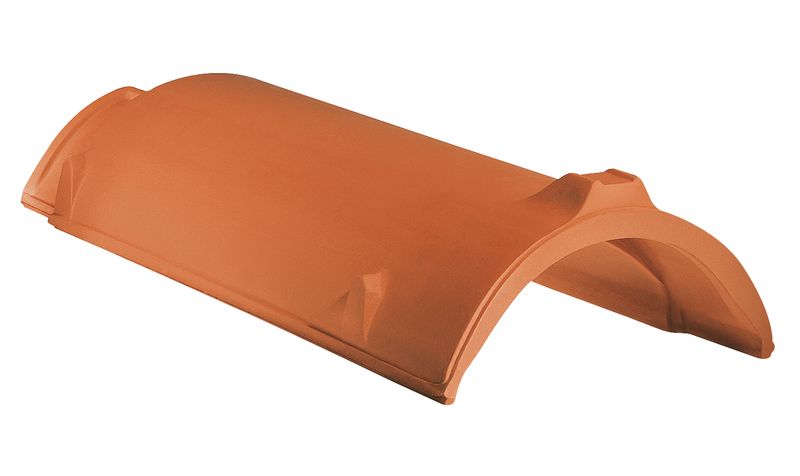

HÖN vorst/nok PV

HÖN vorst/nok PV

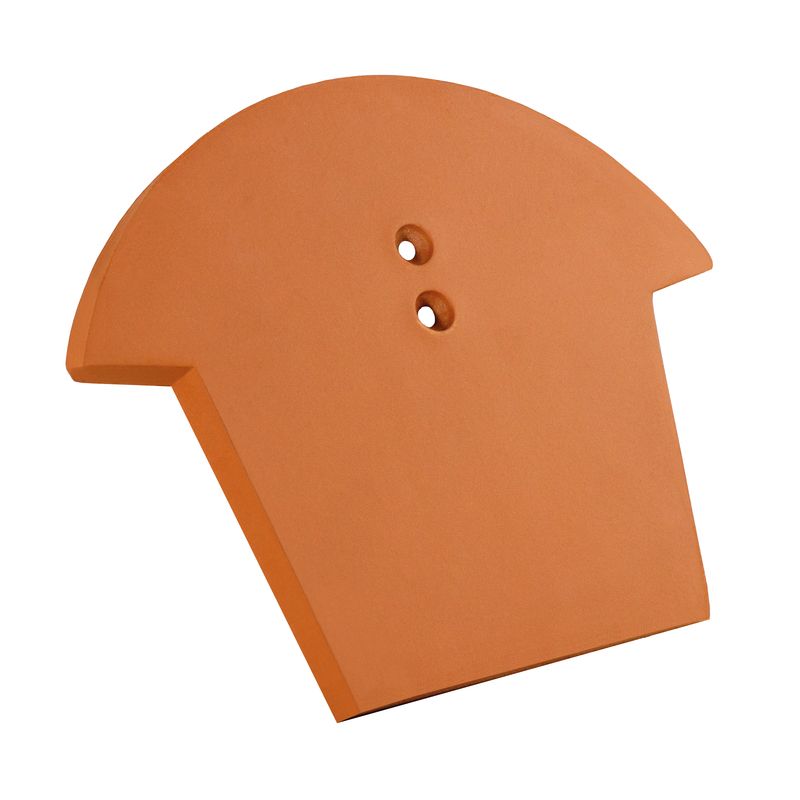

HÖN vorst/nok begin- en eindschijf PV

HÖN vorst/nok begin- en eindschijf PV

HÖN hoekkeperbeginstuk PH

HÖN hoekkeperbeginstuk PH

HÖN hoekkeperbeginstuk PV

HÖN hoekkeperbeginstuk PV

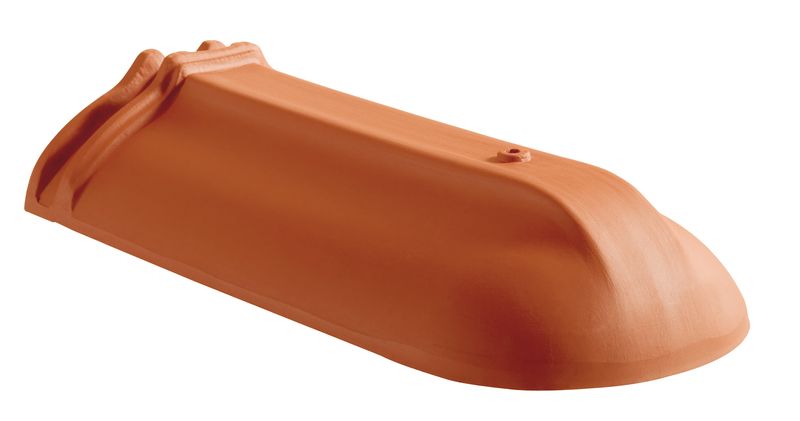

Hip starter ceramic round closure PH HÖN (clay)

Hip starter ceramic round closure PH HÖN (clay)

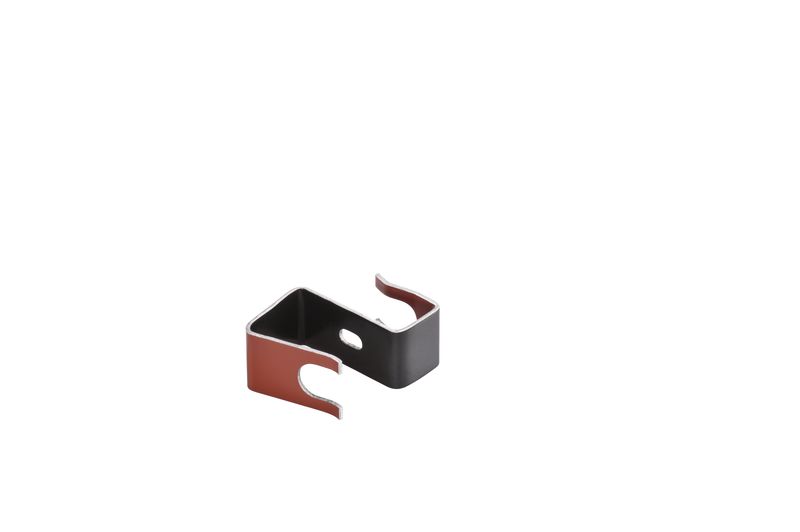

Ridge clip aluminium PH HÖN

Ridge clip aluminium PH HÖN

Ridge clip aluminium PV

Ridge clip aluminium PV

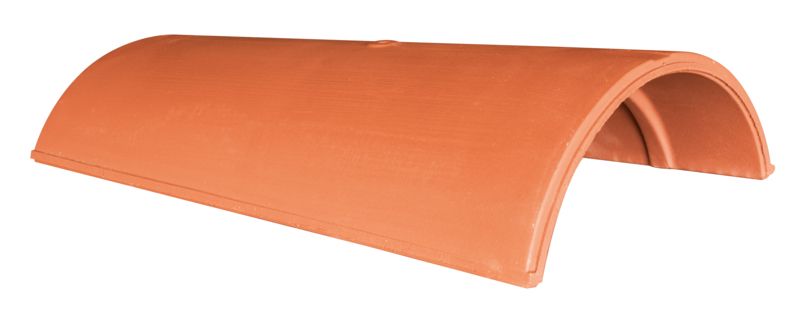

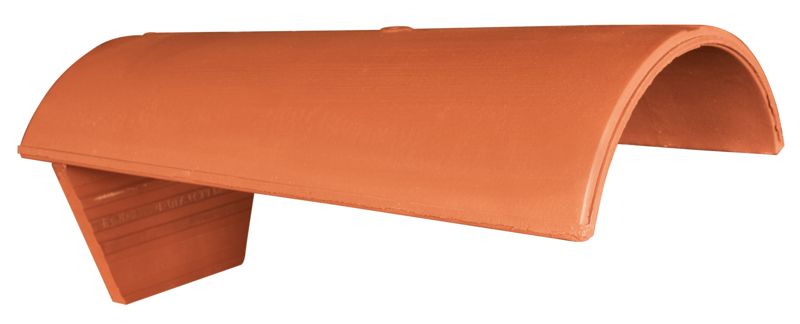

HÖN ridge tile PKH conical

HÖN ridge tile PKH conical

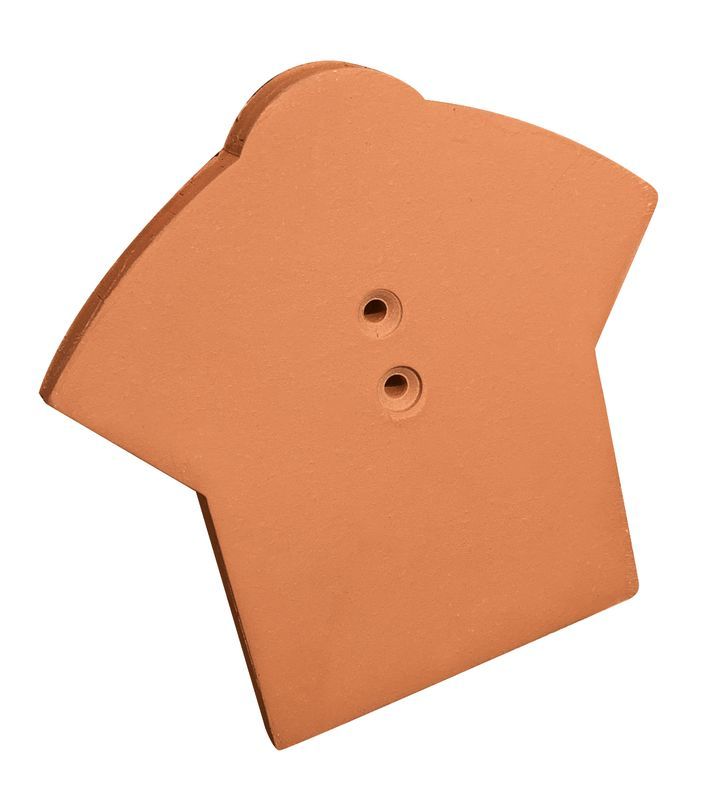

HÖN begin- en eindschijf PH

HÖN begin- en eindschijf PH

HÖN begin- en eindschijf PH

HÖN begin- en eindschijf PH

Ridge starter ceramic with tongue tapered PKH HÖN (clay)

Ridge starter ceramic with tongue tapered PKH HÖN (clay)

Ridge termination ceramic with tongue tapered PKH HÖN (clay)

Ridge termination ceramic with tongue tapered PKH HÖN (clay)

HÖN vorst/nok begin- en eindschijf PV

HÖN vorst/nok begin- en eindschijf PV

Ridge clip aluminium PKH HÖN

Ridge clip aluminium PKH HÖN

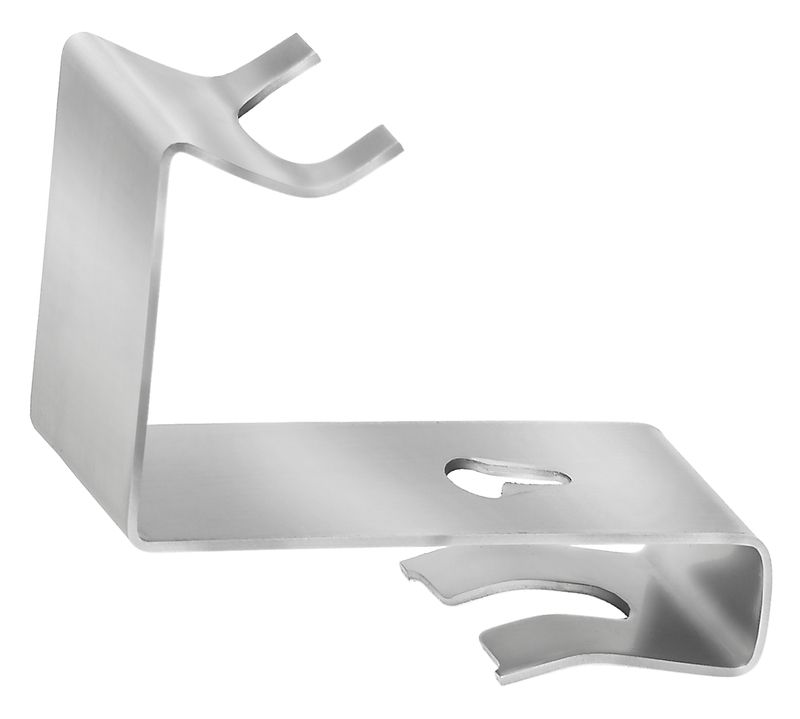

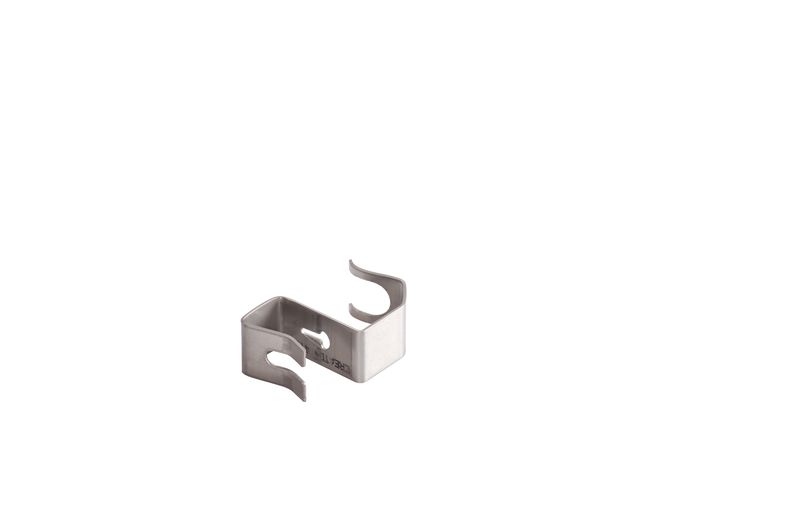

FIRSTFIX ridge clip stainless steel PKH HÖN

FIRSTFIX ridge clip stainless steel PKH HÖN

FIRSTFIX ridge clip stainless steel PH HÖN

FIRSTFIX ridge clip stainless steel PH HÖN

FIRSTFIX ridge clip stainless steel PV

FIRSTFIX ridge clip stainless steel PV

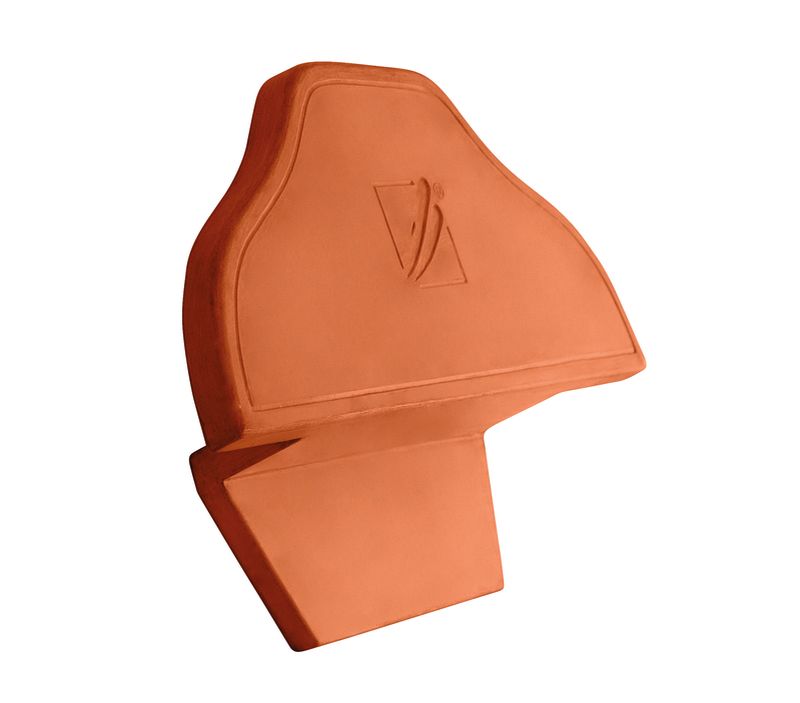

Function starter and termination plate ceramic type 1 PH HÖN (clay)

Function starter and termination plate ceramic type 1 PH HÖN (clay)

Ondernokrol 220 (CREAROLL ALU)

Ondernokrol 220 (CREAROLL ALU)

Ondernokrol 300 (CREAROLL ALU)

Ondernokrol 300 (CREAROLL ALU)

Ondernokrol 220 (CREAROLL PP)

Ondernokrol 220 (CREAROLL PP)

Ondernokrol 310 (CREAROLL PP)

Ondernokrol 310 (CREAROLL PP)

Ondernokrol 390 (CREAROLL PP)

Ondernokrol 390 (CREAROLL PP)

Ridge termination ceramic without tongue tapered PKH HÖN (clay)

Ridge termination ceramic without tongue tapered PKH HÖN (clay)

Ridge starter ceramic without tongue tapered PKH HÖN (clay)

Ridge starter ceramic without tongue tapered PKH HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Productgamma voor sneeuwbescherming, toegang tot het dak en solarinstallaties in metaal

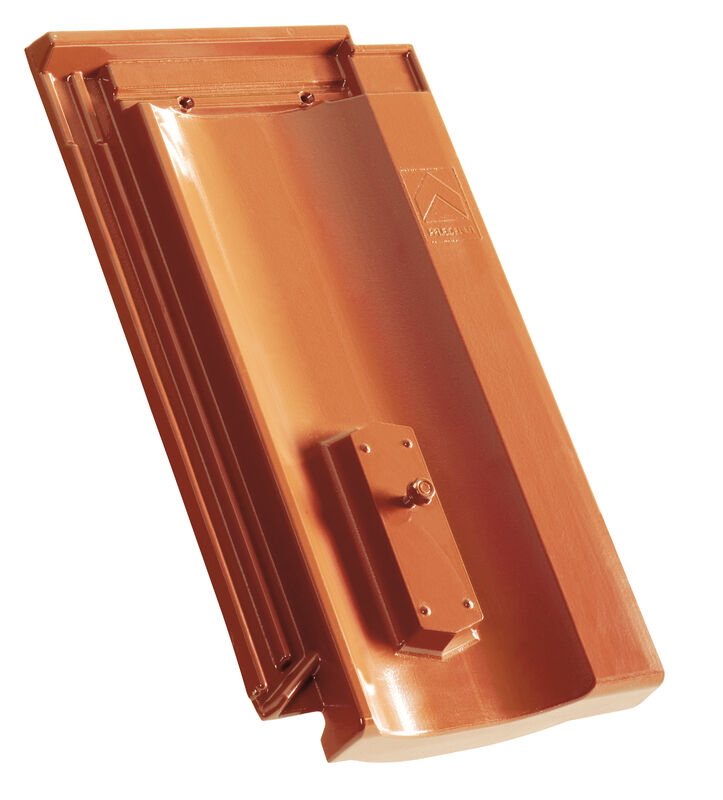

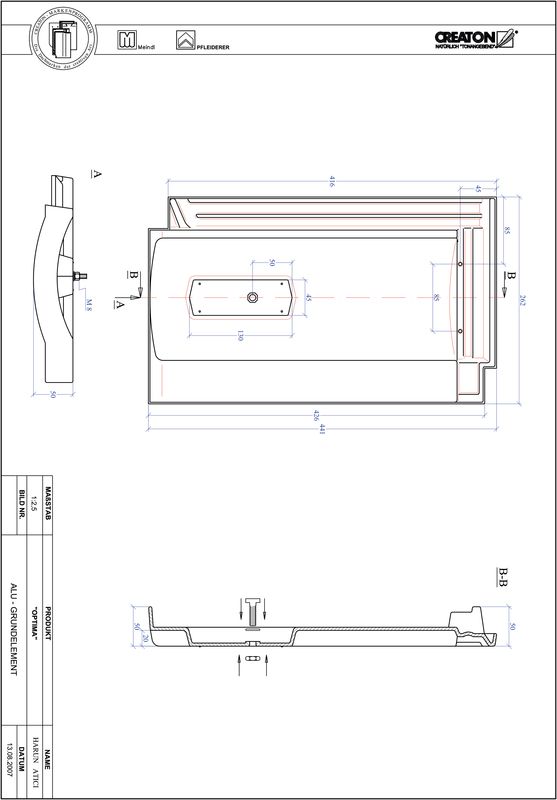

OPT aluminium base element

OPT aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

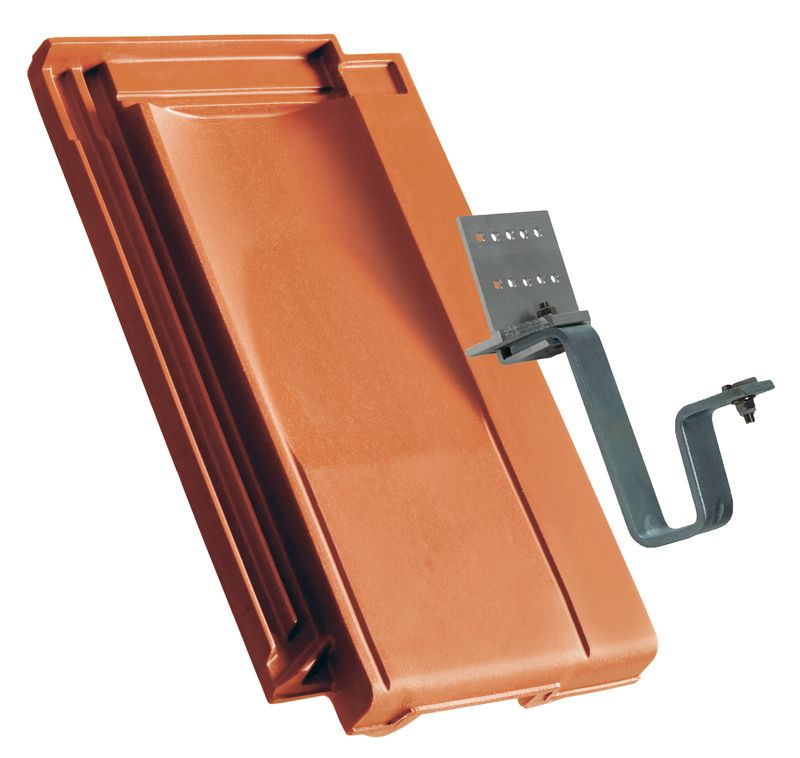

OPT solar system bracket kit for plank installation

OPT solar system bracket kit for plank installation

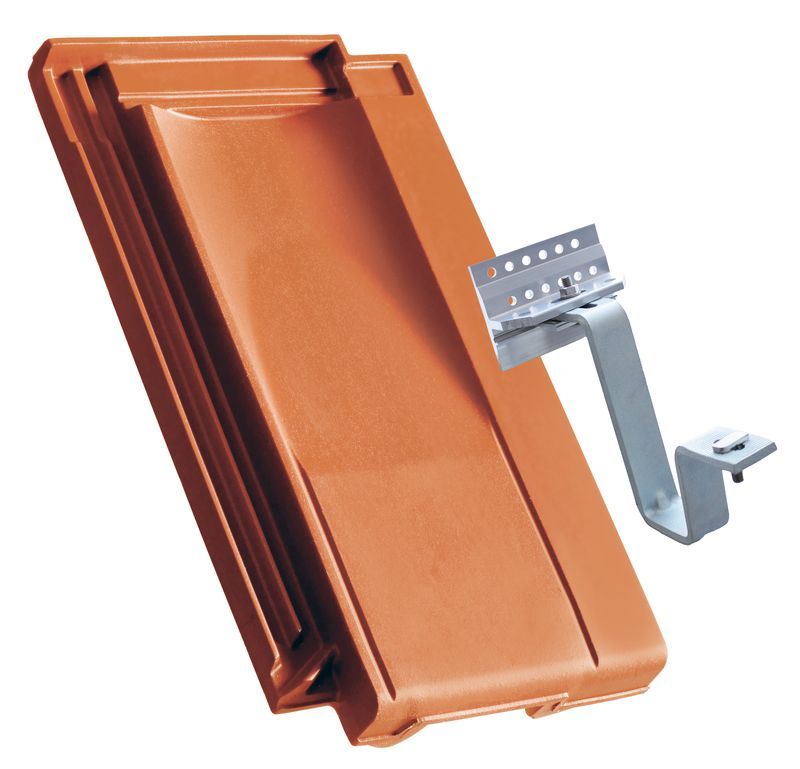

OPT solar system bracket kit for rafter installation

OPT solar system bracket kit for rafter installation

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm
